Anapico is a ISO9001:2008 certified technology leader developing and selling advanced test & measurement instruments for a broad range of RF & microwave applications.

Established and incorporated Zurich (Switzerland) in 2005, Anapico focus is to deliver best-in-class performance, differentiate in important features, and deliver reliable (custom) solutions with premium customer support.

Productgroups

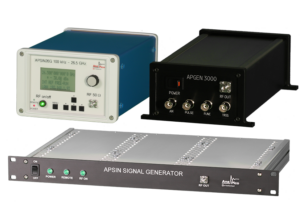

Generators

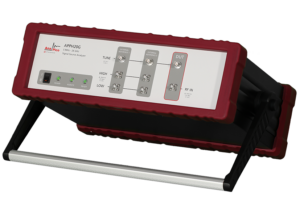

Analyzers

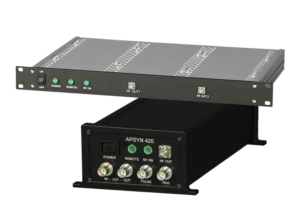

Synthesizers

Model Overview



Modell APSIN2010HC
APSIN4010HC
APSIN6010HC
APSIN12G
APSIN20G
APSIN26G
APGEN3000 APSYN420 APMSXXG
APMS3003
Channels 1 1 1 1 or 2 1 to 8,
3
APSIN6010 APSIN26G APGEN3000 APSYN420 APMSXXG
Frequency 9 kHz to 2 GHz
9 kHz to 4 GHz
9 kHz to 6 GHz
100 kHz to 12 GHz
100 kHz to 20 GHz
100 kHz to 26 GHz
9 kHz to 3 GHz 10 MHz to
20 GHz
1 MHz to 6, 12
or 20 GHz

9 kHz to 3 GHz
Output power -120 to +16 dBm -90 to +26 dBm -65 to +10 dBm +20 dBm -20 to +15 dBm
Phase Noise at 1 GHz, 20 kHz -130 dBc/Hz -128 dBc/Hz -102 dBc/Hz -128 dBc/Hz -135 dBc/Hz
Ref. Frequency 100 MHz OCXO
1-250 MHz in
100 MHz OCXO
1-250 MHz in
10 MHz TCXO 100 MHz OCXO
1-250 MHz in
10 MHz OCXO
10/100 MHz in
Modulation AM, FM, PM, Pulse, Chirp AM, FM, PM, Pulse, Chirp AM, Pulse PM, FM, Pulse Pulse, Chirp
Switching Speed 400 µS 30 µS 5 mS 130 µS 30 µS
Sweeps Yes Yes Yes Yes Yes
Remote control Ethernet, USB, GPIB, SCPI Ethernet, USB, GPIB, SCPI Ethernet, USB, SCPI Ethernet, USB, SCPI Ethernet, USB, GPIB, SCPI
