Programmable Attenuator & Solid-State Switch System Mini-Circuits

Programmable Attenuator – RCDAT-30G-30

















Specifications

• Precision attenuation up to 30 GHz
• Fine resolution, 0.5 dB
• Fast transitions, 100 ns
• USB and Ethernet control
• Control up to 25 attenuators via a single interface
via ‘Daisy Chain’ connection

Applications

• Transmission loss simulation
• 5G network infrastructure
• Microwave point to point links
• VHF / UHF / L / S / C / X / Ku / K band testing

Product Overview

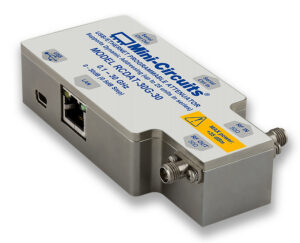

Mini-Circuits’ RCDAT-30G-30 is a precision programmable attenuator covering an extremely wide bandwidth, from 0.1 to 30 GHz. Its unique design allows attenuation settings to be programmed from 0 to 30 dB, in 0.5 dB steps withmonotonic attenuation change per dB, even at the highest frequencies and attenuation settings. The attenuator can be controlled via USB or Ethernet, allowing control directly from a PC, or remotely over a network. Full software support is provided, including our user-friendly GUI application for Windows and a full APIwith programming instructions for Windows and Linux environments (both 32-bit and 64-bit systems). This model also includes Mini-Circuits’ novel dynamic addressing daisy-chaining interface which allows multiple RCDAT-30G-30 attenuators to be connected together into a Master / Slave chain, with independent control of each attenuator channel through the single USB or Ethernet connection of the master unit and no need for the user to set addresses, or use any specialized control unit.





Solid-State Switch Systems – ZTS Series





Product Overview

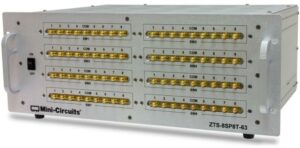

Mini-Circuits’ ZTS series platform allows multiple solid-state switch types to be combined and integrated into a compact rack-mount package with control through a single USB / Ethernet interface. Common features of all the available solid-state switch options are wide bandwidth, fast switching and high isolation. The available switch types include:

  • SP16T (10 to 8000 MHz)
  • SP8T (10 to 6000 MHz)
  • SP4T (2 to 6000 MHz)
  • SPDT (DC to 8000 MHz)

Each ZTS system can be configured according to your requirements, with switches mounted on the front or rear panels and RC connections using SMA or N-type female connectors.
The system can be controlled via USB or Ethernet (supporting both HTTP and Telnet network protocols). Full software support is provided, including our user-friendly GUI application for Windows and a full API with programming instructions for Windows and Linux environments (both 32-bit and 64-bit systems).
